RC Hawker Hurricane built with a Hot Wire CNC foam cutter

Why build a Hawker Hurricane in foam with a Hot Wire CNC foam cutter? Well as you may have noticed on my website I’ve built a Hot Wire CNC foam cutter and built several flying wings. So I was thinking about my next build and it had to be the Hurricane IID tank buster in Desert Air Force colours. I already have a Spitfire and Lancaster and had just recently read Leo Mckinstry’s excellent book on the Hurricane which inspired me to build one.

Huuricane IID

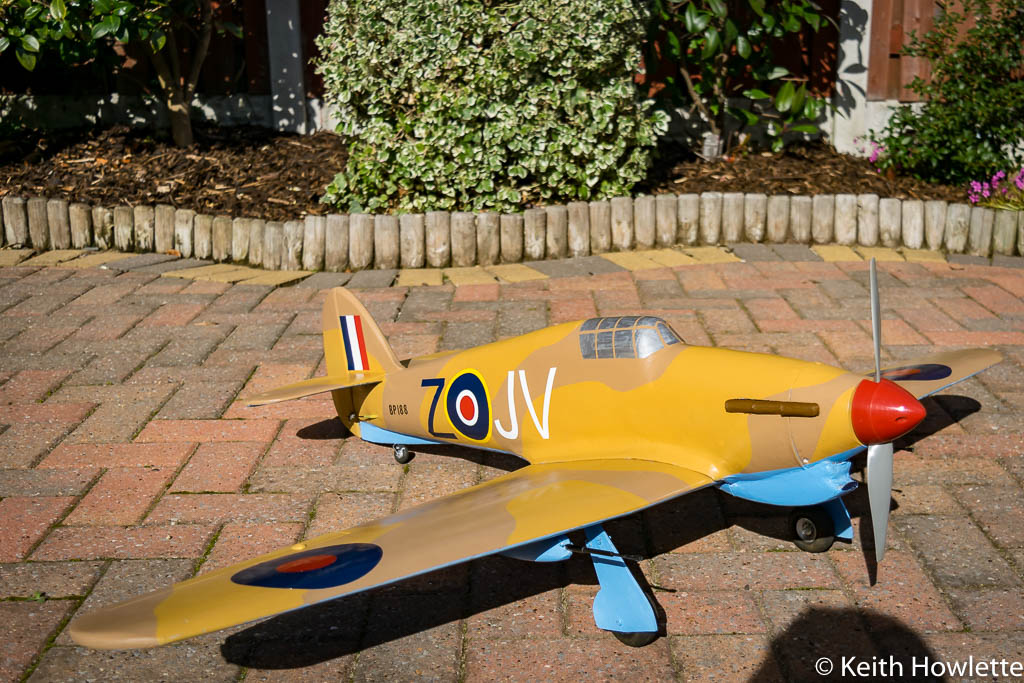

Finished at Last

Building a model from scratch is quite challenging and requires a lot of research but I enjoy that and you sort of build an affinity with the aircraft.  So that keeps me going when sometimes the motivation slides a little.

Do you need a Hot Wire CNC Foam Cutter?

The short answer is No. You can make foam core wings and fuselage sections without a CNC machine and many model builders do. I did before I built my CNC foam cutter machine for my Super VC10 but only for the wings and tailplane.

I used a gravity hot wire bow which pulls a hot wire over some airfoil templates. Works quite well with a bit of practice but making the templates takes a lot of time and you usually need one for the top and bottom of the airfoil which soon adds up. It could be argued that the time I’ve spent on the CNC machine is far more and that’s probably true. But now I can produce a wing in one cut and in about 20 mins. My third flying wing was a quick build after I crashed the first one through pilot error.

A good thread on RC groups on gravity hot wire foam cutter click

We need a plan

Firstly you need to decide what size aircraft you are going to build. Well, I wanted something that was a similar size to my Ripmax Spitfire for ease of storage and transportation so I settled on a 50 inch (1270mm) wingspan. There are quite a lot of drawings and CAD plans on the Internet for most aeroplanes. I always try to find a CAD drawing in DXF format which is an industry-standard which you can use one of the Free CAD programs to scale the drawing to your dimension.  My favourite was DraftSight but it’s no longer free.  LibreCad is available for free which looks very promising.

The Wings

I’ve used two pieces of software to generate the g-code to build the Hurricane. Profili2 Pro for the wings and DevFus Foam for the fuselage. See my article Free CNC software if you are on a budget.

Profili2 Pro is quite an extensive program and has evolved over the years and can do lots of other clever stuff with airfoils. It has an option to generate g-code for 4 axes CNC machines and this is what I used for my flying wings. DevWing Foam 2 is the replacement for Profili. This is even better and well worth the cost in my opinion. Check my post here for details and tutorials DevWing Foam

Part 1 of the video in the list below shows the wings were made with Profili2 Pro, but you could have used one of the free options I’ve linked above

The Fuselage

I used DevFus Foam to generate the g-code for the fuselage sections. Which is available in Demo version that is fully working apart from being able to save the g-code. www.devcad.com

Part 2 in the video list shows how to use DevFus Foam to make the fuselage

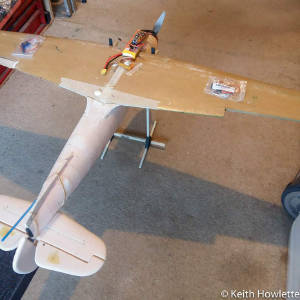

Part 3 in the list shows and the build progress

I’ve now created a video series on how to use DevFus Foam 2  to build the fuselage of a  BAE Hawk with an electric ducted fan.  Here’s a link to it https://www.rckeith.co.uk/getting-started-devfus-foam-2/

Maiden Flight

On the 7th of October 2018, she was ready for her maiden flight.  I was quite nervous but reasonably confident she would fly well.  I’d worked out with a 3000mAH 3S Lipo battery I would have 5 minutes at full power, but you don’t fly on full power all the time so I set 5 minutes on the timer.  She was hand-launched, the undercarriage in the pictures is just for static display and is taken off for flight.

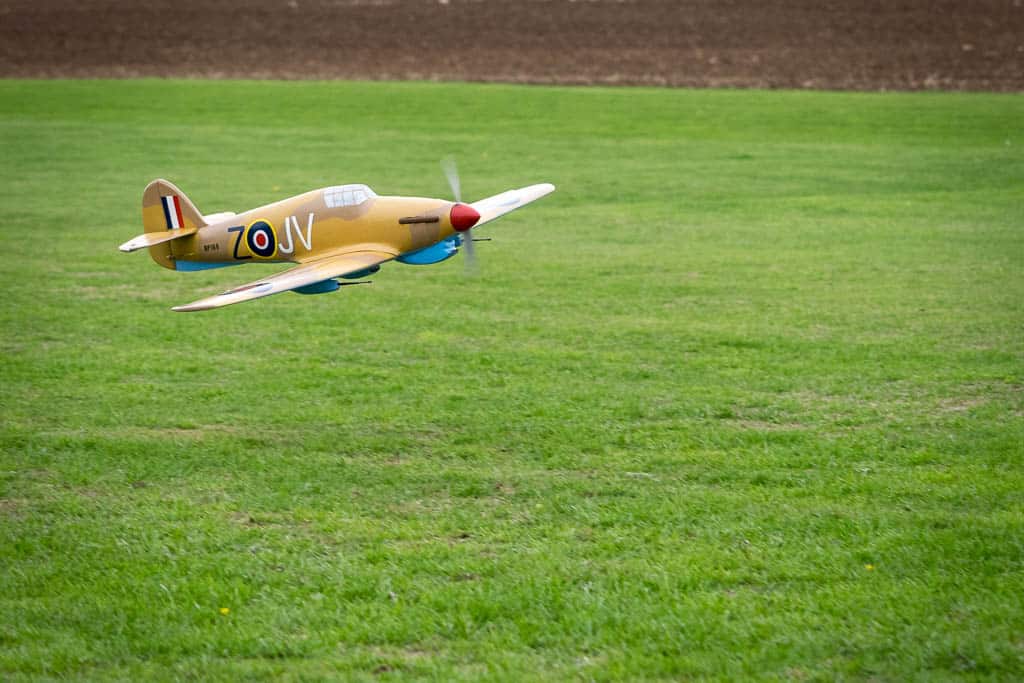

She leapt away and was a little lively until I got her trimmed and on lower rates, but she flies very well, what a relief after 3 years since starting this project.

Was it worth all the effort?

3 years is a long time to build a model aircraft. CNC foam cutting isn’t a long process but I lost a little motivation and got sidetracked on to other builds. Also, my second grandchild arrived during the build.

Yes, it was worth it because it looks great and flies really well and I went on to build another model like this my T45 Goshawk but that’s another story!

0 Responses

  1. Keith Renecle

    Hi Keith, thanks for all of the great info on the cnc foam cutter. I want to build a similar machine so this info really helps for me to know what to buy and also how to use it all. Just a few questions on the Hurricane build. What type of glue do you use to join it all together? It is obviously something that sands well. Finally, do you cover the entire model with anything like glass cloth or tissue before painting, and if you paint the raw foam, then what kind of paint do you use? Thanks again!
    Keith Renecle
    Darkest Africa

    • Keith

      Hi Keith
      I use expoxy to glue it all together and because it takes a lot I just get from our Pound shops in the UK.
      On the wing I’ve just used brown paper and PVA glue to cover but on the fuselage I have some Poly C and cloth from here http://www.rcworld.co.uk/acatalog/Poly-C-500ml-PolyC500.html but havent used it yet.
      For painting I then to use emulsion match/tester pots from the local hardware store and spray on with a small air brush. Usually they can match a colour form a book, get some strange looks when I take my wardbird books in. I then use water based gloss varnish to seal and because the tester pots are matt it give a satin finish that’s easy to keep the dust off. I have on some models just painted on the foam and I always use emulsion for that.
      I still haven’t finished the Hurricane but I’m retiring at the end of the year so hope to get it finished then or maybe before with lots of other project and a few repairs.
      Hope that helps, and any question ‘ll be glad to answer
      Where in Africa are you ? I lived in Zambia for 2 years when I was a kid

  2. Keith Renecle

    Hi Keith,
    Thanks for the info. I would have thought that epoxy would be hard to sand next to the foam. That brown paper is also used on foam slope soarers but I find it to be rather heavy. I have a roll of teabag tissue and it is almost identical to medium weight silkspan, With the thinned white wood glue this makes a really good covering over foam.

    I live in Centurion near Pretoria. Zambia was most likely more livable when you were a kid! It’s still not as ruined as Zimbabwe.
    Keith R
